OfficialA0032QUADRO website: From 18 mo

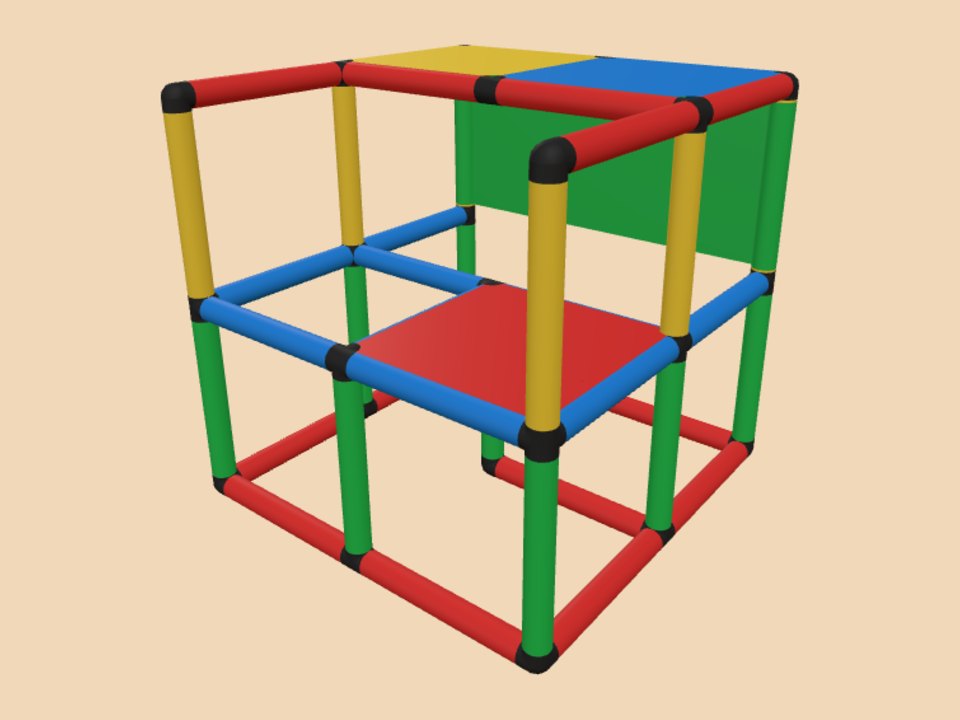

Dice Table With Chair

QUADROOfficial

This official model takes 70 parts, covers 85 × 85 cm, stands 85 cm tall and goes together in 7 steps. The full parts list, step-by-step instructions and the sets that build it are below.

Footprint: 85 × 85 cm (0.7 ㎡)
Height: 85 cm
Climbable height: 80 cm

Parts: 70
Manual steps: 7

Open in Builder →

Create shared copy All official models

A factory model, not a recommendation. Judge height, span and rails for your home.

Parts list for Dice Table With Chair

Part	Code	Qty
Space 5-way	CS5	2
Space 4-way	CS4	7
Space 3-way	CS3	6
Surface 3-way	CF3	6
Elbow	CS2	3
Straight	CF2	1
Tube 35 cm	T35	41
Panel 40×40 cm	PA4	3
Fabric sheet		1
Total		70

Step-by-step instructions: 7 steps

Build from the bottom up, level by level: first the connectors and tubes of a level, then the uprights to the next one, and panels and fabric once the frame stands. Follow along in 3D →

Step 1 · Level 1: connectors and tubes on the floorSpace 4-way× 1Space 3-way× 4Surface 3-way× 2Elbow× 1Straight× 1Tube 35 cm× 9
Step 2 · Uprights up to level 2Tube 35 cm× 8
Step 3 · Level 2: connectors and tubes 40 cm upSpace 5-way× 2Space 4-way× 4Surface 3-way× 2Tube 35 cm× 9
Step 4 · Uprights up to level 3Tube 35 cm× 6
Step 5 · Level 3: connectors and tubes 80 cm upSpace 4-way× 2Space 3-way× 2Surface 3-way× 2Elbow× 2Tube 35 cm× 9
Step 6 · Level 2: panels and fabricPanel 40×40 cm× 1
Step 7 · Level 3: panels and fabricPanel 40×40 cm× 2Fabric sheet× 1

Which set builds it

Any one of these sets is enough on its own, no extra parts needed:

Starter Basic Offroad Junior Universal

Within 8 extra parts:

Youngster: 5 short, Space 5-way× 2 Space 4-way× 1 Tube 35 cm× 1 Fabric sheet× 1
Climbing Pyramid: 5 short, Straight× 1 Panel 40×40 cm× 3 Fabric sheet× 1
Climbing Parkour: 7 short, Space 5-way× 2 Tube 35 cm× 3 Panel 40×40 cm× 1 Fabric sheet× 1
Furniture Kit L: 1 short, Fabric sheet× 1
Genius: 1 short, Fabric sheet× 1
Evolution: 1 short, Fabric sheet× 1
Ultimate: 1 short, Fabric sheet× 1
